NOTE: compatible with Grandstream GRP2615

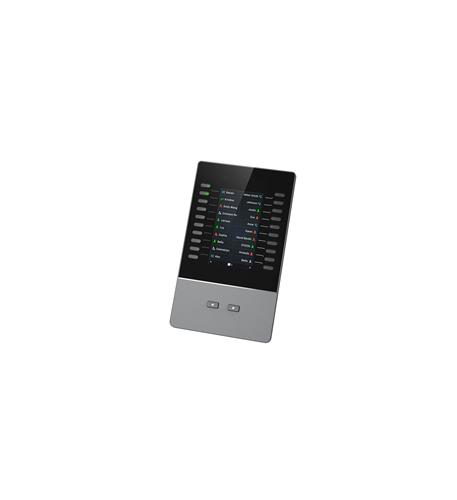

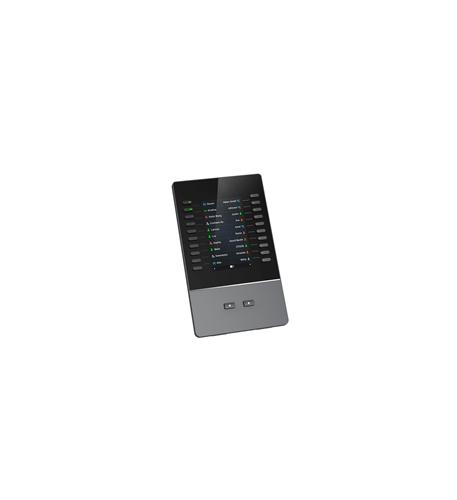

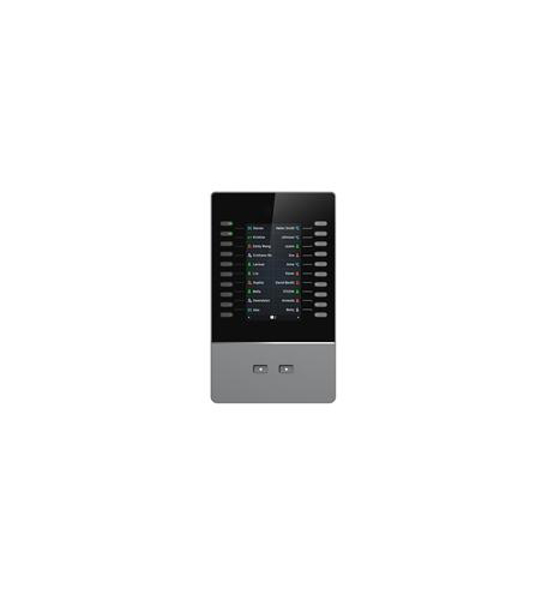

The GBX20 is an Extension Module that adds functionality, versatility and flexibility to Grandstream’s GRP2615 Carrier-Grade IP Phone and GXV3350 IP Video Phone. It features a 272x480 LCD display that offers up to 40 contacts per module with support for up to 160 contacts by using 4 modules. The GBX20 supports a wide-range of advanced call features including BLF, call park/pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and much more. An ideal solution for businesses and receptionists managing high call volumes, the GBX20 ensures maximum productivity by efficiently monitoring and dispatching incoming calls.
Lines 20 per page (each module contains 2 pages, for up to 40 lines per moduleUp to 160 with 4 daisy-chained modules
Compatible Grandstream IP PhonesGRP2615 and GXV3350
Graphic Display4.3 inch (272x480) TFT color LCD
Feature SupportLocal GUI with animation driven from the host GRP2615 or GXV3350 phone; Multi-ple line/call appearances
PowerA single GBX20 can be powered by host phone (GRP2615 or GXV3350); when 2 or more GBX20 is connected an included 12V PSU is needed.
Firmware UpgradesGBX20 firmware is upgraded by direct network download through host phone (GRP2615 or GXV3350)’s network connection and firmware upgrade setup.
PhysicalDimension: 210mm*124mm*33.5mm; Unit weight: 360g; Package weight:700g
Temperature and HumidityOperation: 0°C to 40°CStorage: -10°C to 60°C Humidity: 10% to 90% Non-condensing
Package ContentGBX20 Extension Board, base stand, Extension Board Connector Plate, Screws, USB cable, Quick Installation Guide
ComplianceFCC: Part 15 Class BIC: ICES-003CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1RCM: AS/NZS CISPR32; AS/NZS 62368
